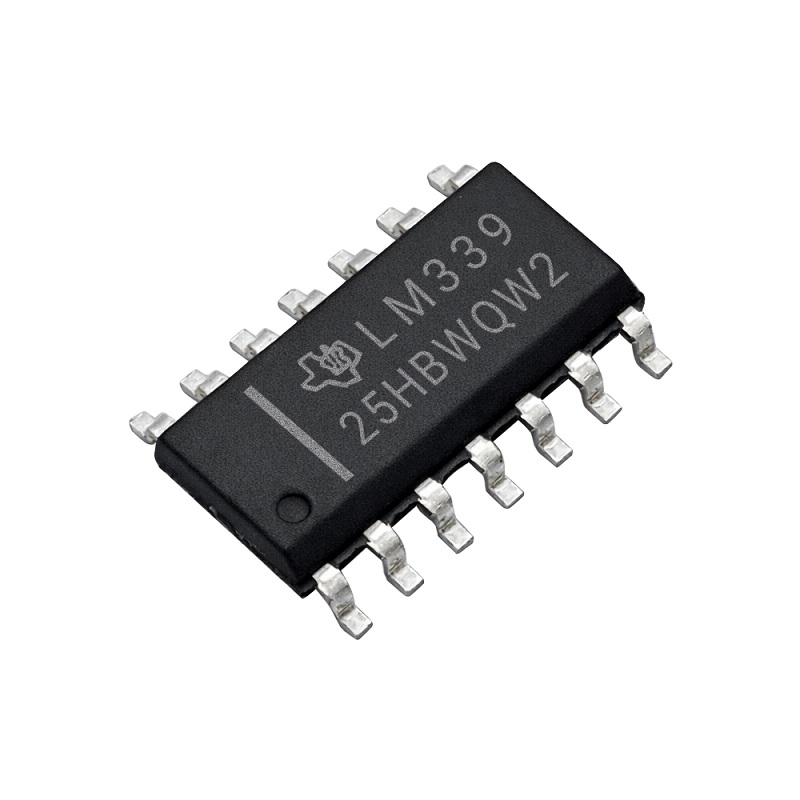

آی سی LM339 پکیج SO-14

توضیحات

معرفی آی سی LM339 پکیج SO-14:

Product Category: Analog Comparators
Mounting Style: SMD/SMT
Package / Case: SOIC-14
Comparator Type: Differential
Number of Channels: 4 Channel
Output Type: Rail-to-Rail
Output Current per Channel: 6 mA
Ib – Input Bias Current: 50 nA
Vos – Input Offset Voltage: 5 mV
Supply Voltage – Max: 30 V
Supply Voltage – Min: 2 V
Operating Supply Current: 500 uA
Response Time: 300 ns
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Packaging: Cut Tape
Packaging: MouseReel
Packaging: Reel
Features: Standard comparator
Height: 1.58 mm
Length: 8.65 mm
Product: Analog Comparators
Series: LM339
Supply Type: Single, Dual
Technology: Bipolar
Type: Differential Comparator
Width: 3.91 mm
Brand: Texas Instruments
Shutdown: No Shutdown
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V
GBP – Gain Bandwidth Product: –
Ios – Input Offset Current: 50 nA
Maximum Dual Supply Voltage: +/- 15 V
Minimum Dual Supply Voltage: 1 V
Operating Supply Voltage: 2 V to 30 V
