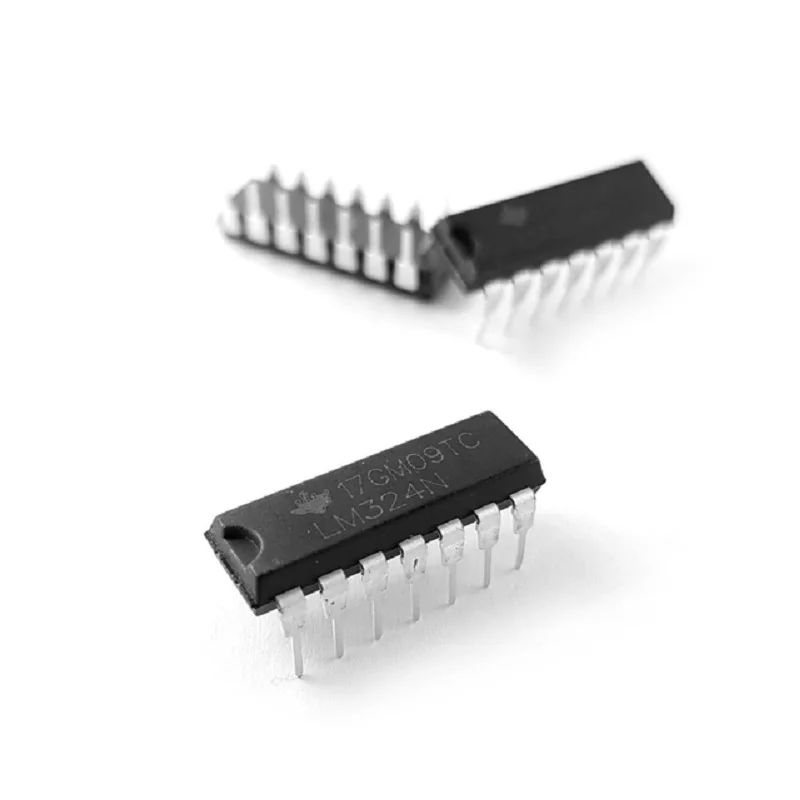

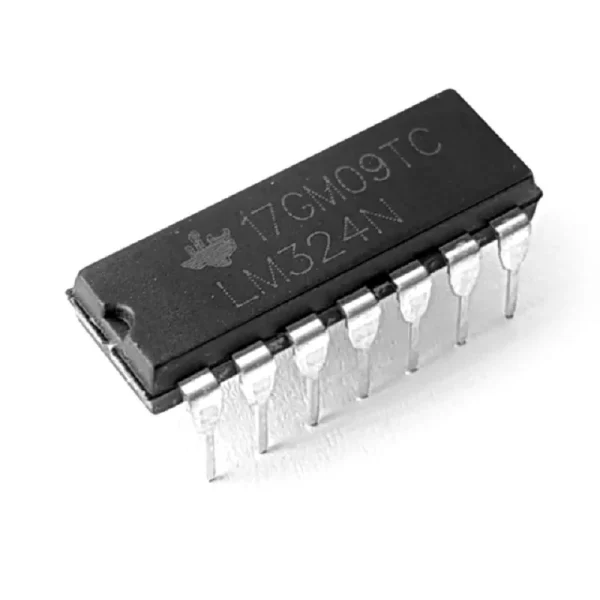

آیسی LM324N

توضیحات

*جهت مشاهده دیتاشیت کلیک بفرمایید*

Specification

Product Category: Operational Amplifiers – Op Amps
RoHS: Details
Mounting Style: Through Hole
Package / Case: PDIP-14
Supply Voltage – Max: 32 V
Output Current per Channel: 40 mA
Number of Channels: 4 Channel
GBP – Gain Bandwidth Product: 1.2 MHz
SR – Slew Rate: 0.5 V/us
CMRR – Common Mode Rejection Ratio: 65 dB to 80 dB
Ib – Input Bias Current: 45 nA
Vos – Input Offset Voltage: 7 mV
Supply Voltage – Min: 3 V
Operating Supply Current: 1.5 mA
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Shutdown: No Shutdown
Series: LM324
Packaging: Tube
Amplifier Type: General Purpose Amplifier
Features: Standard Amps

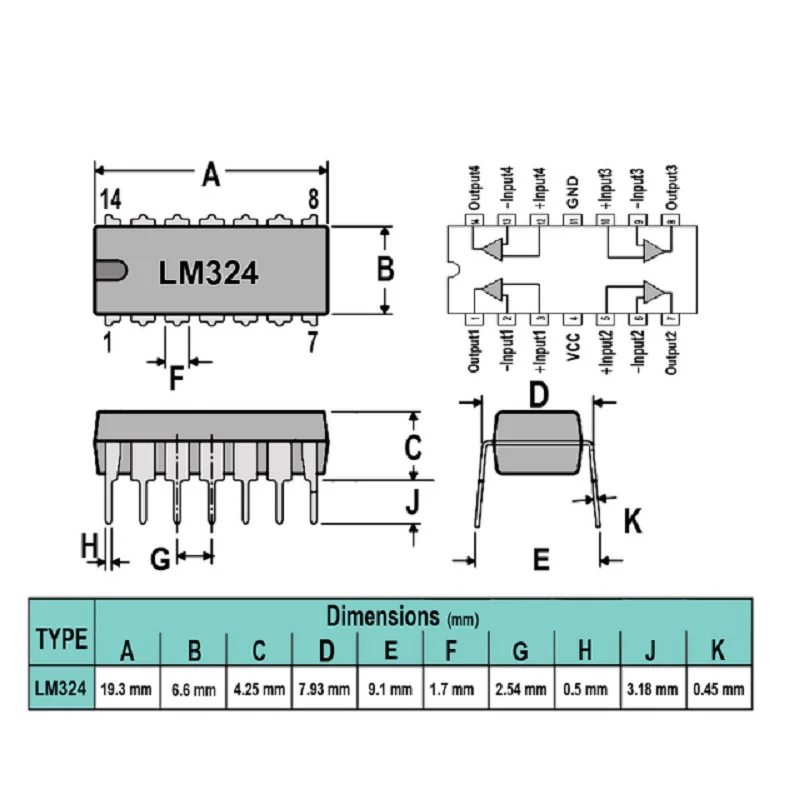

Height: 4.57 mm
Input Type: Rail-to-Rail
Length: 19.3 mm
Product: Operational Amplifiers
Supply Type: Single, Dual
Technology: Bipolar
Width: 6.35 mm
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V
en – Input Voltage Noise Density: 35 nV/sqrt Hz
Ios – Input Offset Current: 150 nA
Maximum Dual Supply Voltage: +/- 16 V
Minimum Dual Supply Voltage: +/- 1.5 V
Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
Product Type: Op Amps – Operational Amplifiers
PSRR – Power Supply Rejection Ratio: 100 dB
