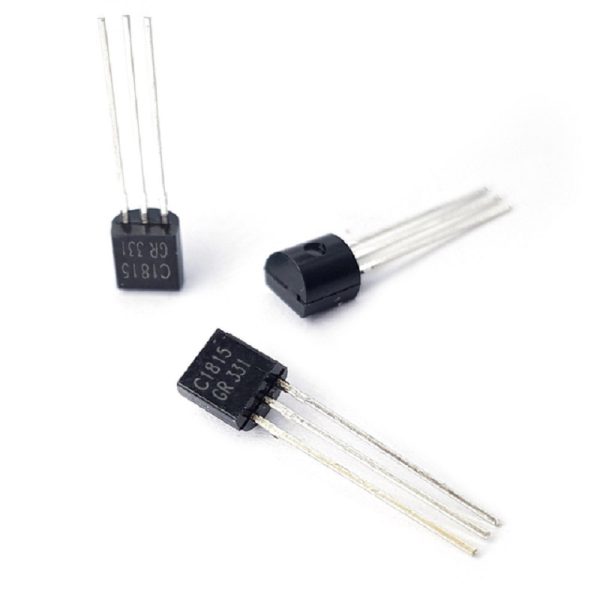

ترانزیستور C1815

توضیحات

معرفی ترانزیستور C1815

C1815  Specification

Product Category : Bipolar Transistors – BJT
Mounting Style : Through Hole
Package / Case: TO-92-3
Transistor Polarity: NPN
Collector- Emitter Voltage VCEO Max: 50 V
Collector- Base Voltage VCBO: 60 V
Emitter- Base Voltage VEBO: 5 V
Collector-Emitter Saturation Voltage: 250 mV
Maximum DC Collector Current: 150 mA
Pd – Power Dissipation: 400 mW
Gain Bandwidth Product fT: 80 MHz
Minimum Operating Temperature: – 55 C

Maximum Operating Temperature: + 125 C

جهت مشاهده دیتاشیت ترانزیستور C1815 کلیک نمایید.
