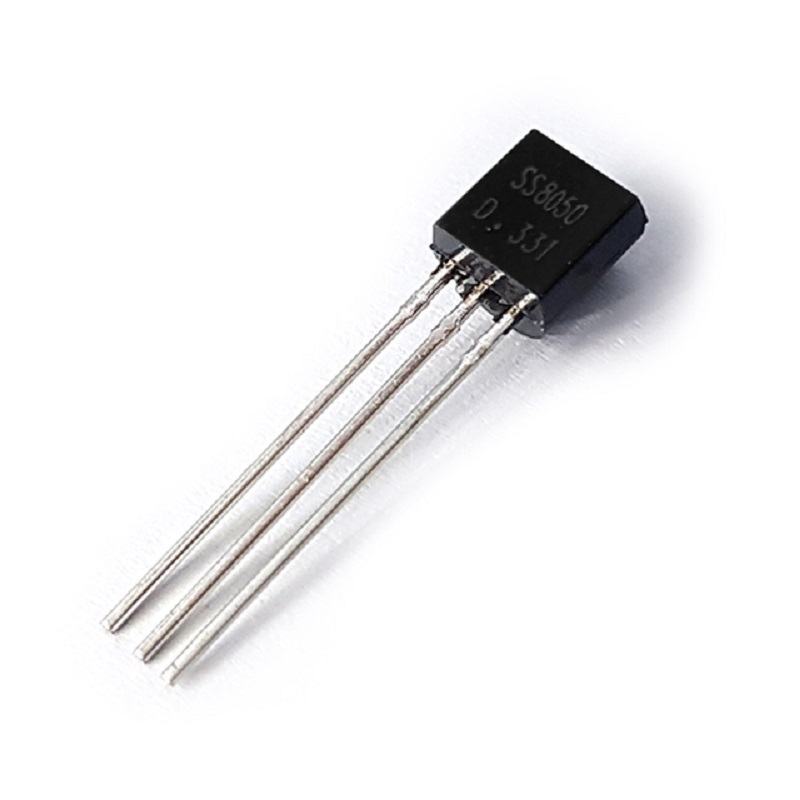

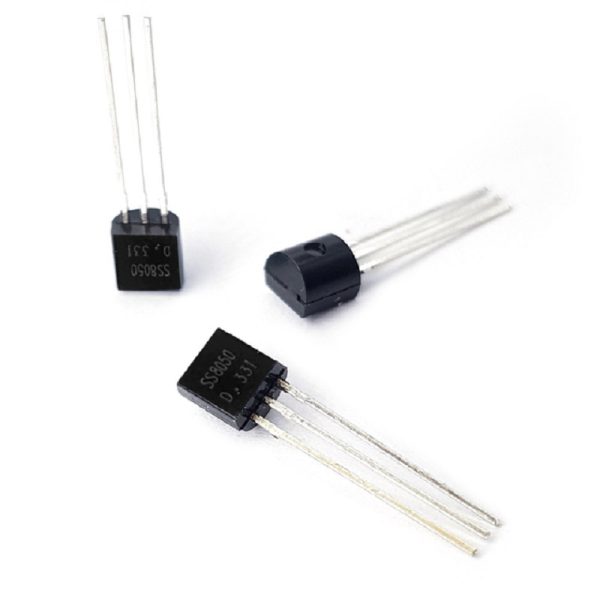

ترانزیستور C8050

توضیحات

معرفی ترانزیستور C8050

Specification

Type Designator: S8050 / 2SC8050 / C8050
Material of Transistor: Si
Polarity: NPN
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Collector-Emitter Voltage |Vce|: 25 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 2A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 9 pF
Forward Current Transfer Ratio (hFE), MIN: 160
Package: TO-92

جهت مشاهده دیتاشیت ترانزیستور C8050 کلیک نمایید.
