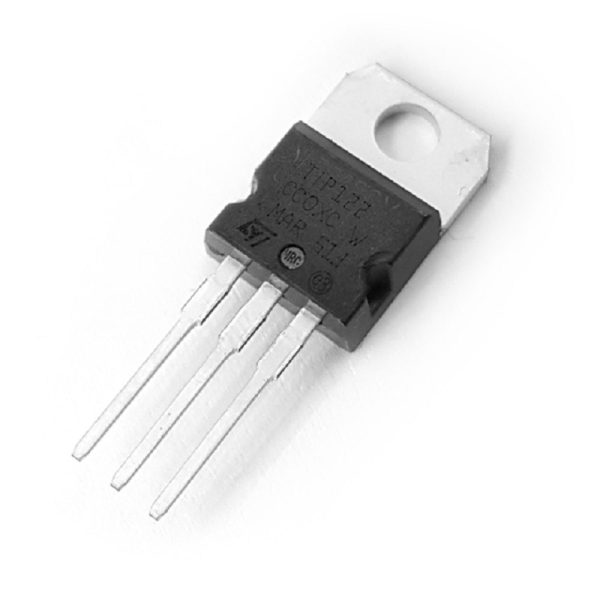

ترانزیستور TIP122

توضیحات

معرفی ترانزیستور TIP122

Specification

Transistor Polarity: NPN
Collector- Emitter Voltage VCEO Max: 100 V
Emitter- Base Voltage VEBO: 5 V
Collector- Base Voltage VCBO: 100 V
Maximum DC Collector Current: 5 A
Maximum Collector Cut-off Current: 200 uA
Mounting Style: Through Hole
Package / Case: TO-220
Maximum Operating Temperature: + 150 C
Series: TIP122
Height: 9.15 mm
Length: 10.4 mm
Width:4.6 mm
