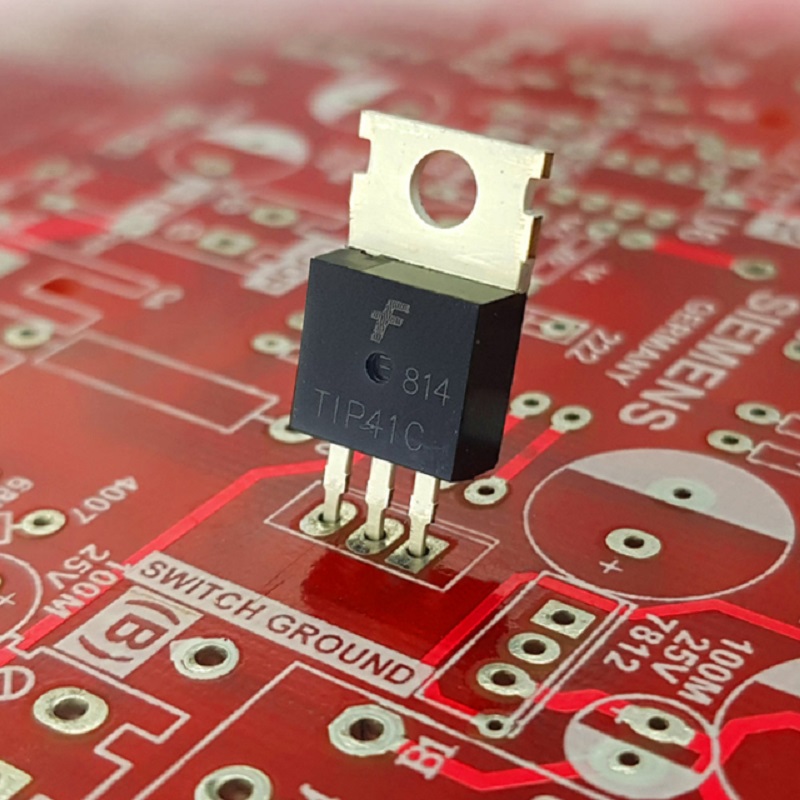

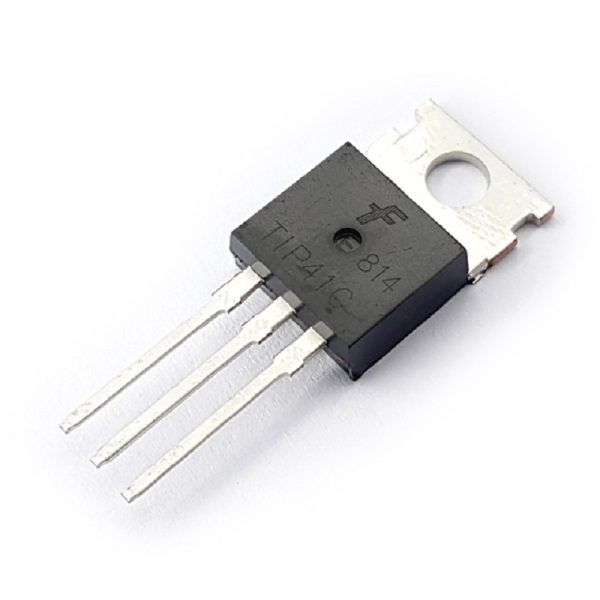

ترانزیستور TIP41C

توضیحات

معرفی ترانزیستور TIP41C

Specification

Manufacturer: STMicroelectronics
Product Category: Bipolar Transistors – BJT
Mounting Style: Through Hole
Package / Case: TO-220-3
Transistor Polarity: NPN
Configuration: Single
Collector- Emitter Voltage VCEO Max: 100 V
Collector- Base Voltage VCBO: 100 V
Emitter- Base Voltage VEBO: 5 V
Collector-Emitter Saturation Voltage: 1.5 V
Maximum DC Collector Current: 6 A
Pd – Power Dissipation: 65 W
Gain Bandwidth Product fT: –
Minimum Operating Temperature: –
Maximum Operating Temperature: + 150 C
