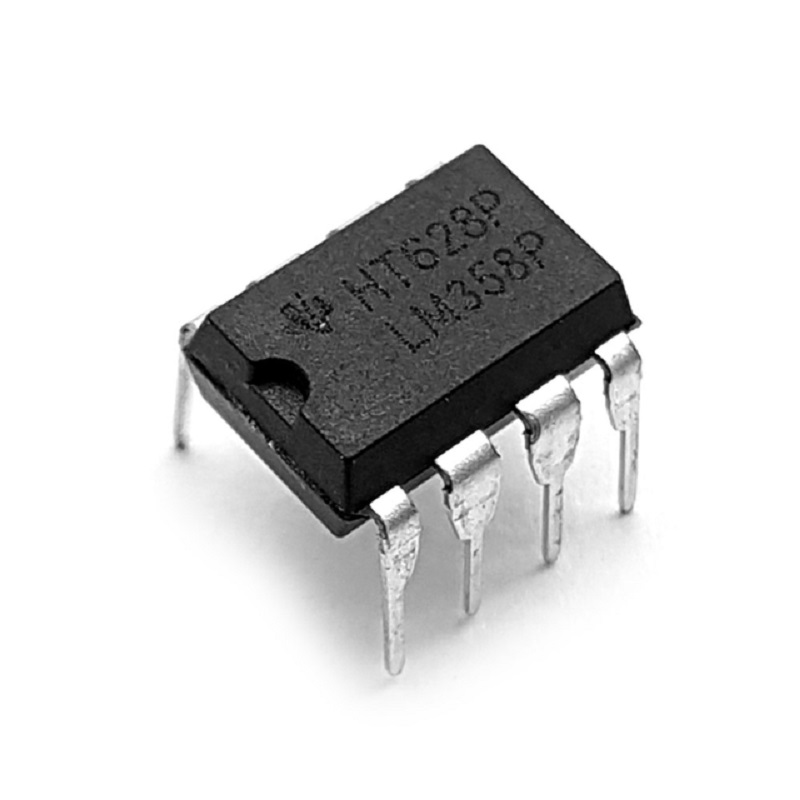

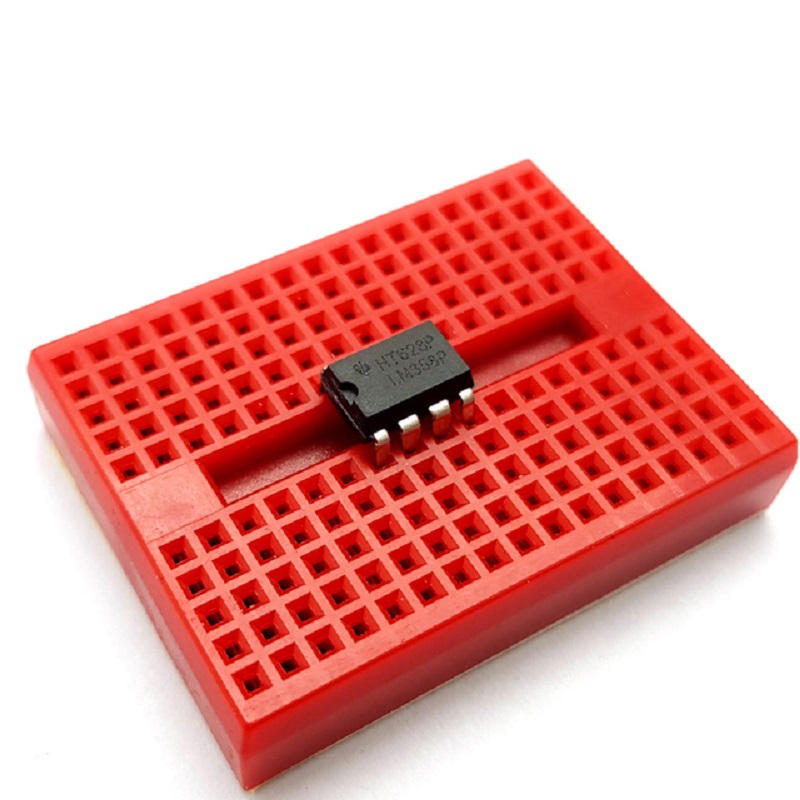

آی سی LM358

توضیحات

معرفی آی سی LM358:

Specification

Product Category: Operational Amplifiers – Op Amps
Mounting Style: Through Hole

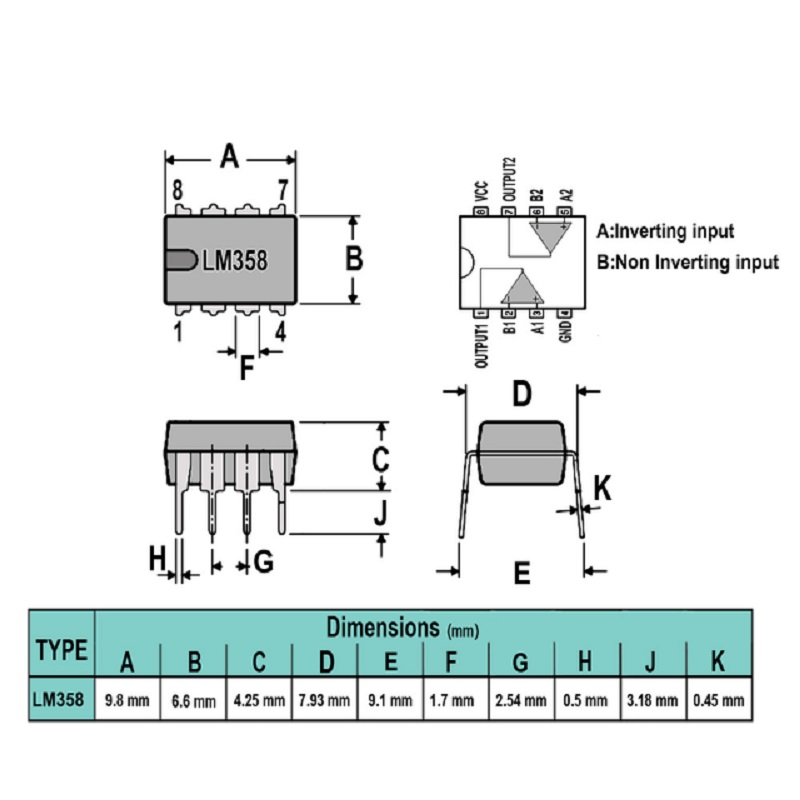

Package / Case: PDIP-8
Supply Voltage – Max: 32 V
Output Current per Channel: 30 mA
Number of Channels: 2 Channel
GBP – Gain Bandwidth Product: 1 MHz
SR – Slew Rate: 0.1 V/us
CMRR – Common Mode Rejection Ratio: 65 dB to 85 dB
Ib – Input Bias Current: 100 nA
Vos – Input Offset Voltage: 7 mV
Supply Voltage – Min: 3 V
Operating Supply Current: 250 uA
Minimum Operating Temperature: 0 C
Maximum Operating Temperature: + 70 C
Shutdown: No Shutdown
Series: LM358-N
Packaging: Tube
Input Type: Rail-to-Rail
Product: Operational Amplifiers
Supply Type: Single, Dual
Brand: Texas Instruments
Minimum Dual Supply Voltage: +/- 1.5 V
Operating Supply Voltage: 3 V to 32 V, +/- 1.5 V to +/- 16 V
