ترانزیستور TIP127

توضیحات

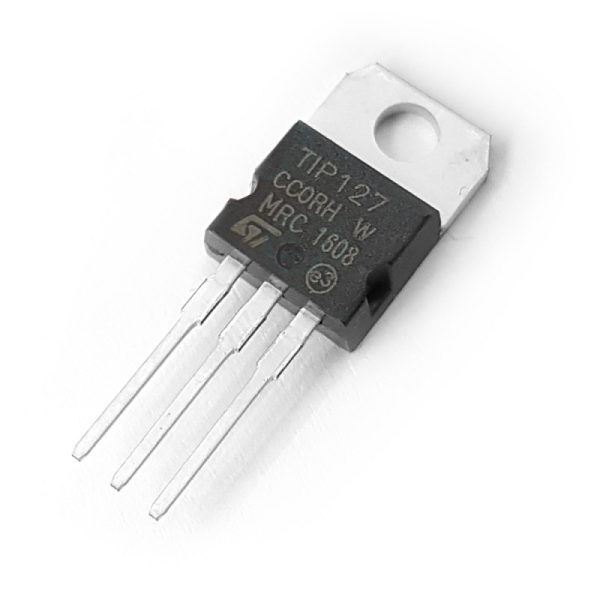

معرفی ترانزیستور TIP127

Specification

Type Designator: TIP127
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 65 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 100 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 300 pF
Forward Current Transfer Ratio (hFE), MIN: 1000
Package: TO-220AB
